A stranding machine is an essential piece of equipment used in the electrical continuous casting and rolling process. It is a specialized machine that is designed to twist multiple strands of copper or aluminum wire into a single cable. The machine is typically used in the production of medium and high voltage power cables, communication cables, and other types of specialty cables.

The stranding machine consists of a rotating drum that has multiple bobbins or spools of wire mounted on it. The spools are typically arranged in a circular pattern around the drum. The wire from each spool is fed through a series of rollers and guides that ensure proper tension and alignment. The individual wires are then twisted together to form a single cable.

There are several different types of stranding machines available, including rigid frame machines, planetary cage machines, and tubular stranding machines. Each type of machine is designed for a specific application and has its unique advantages and disadvantages.

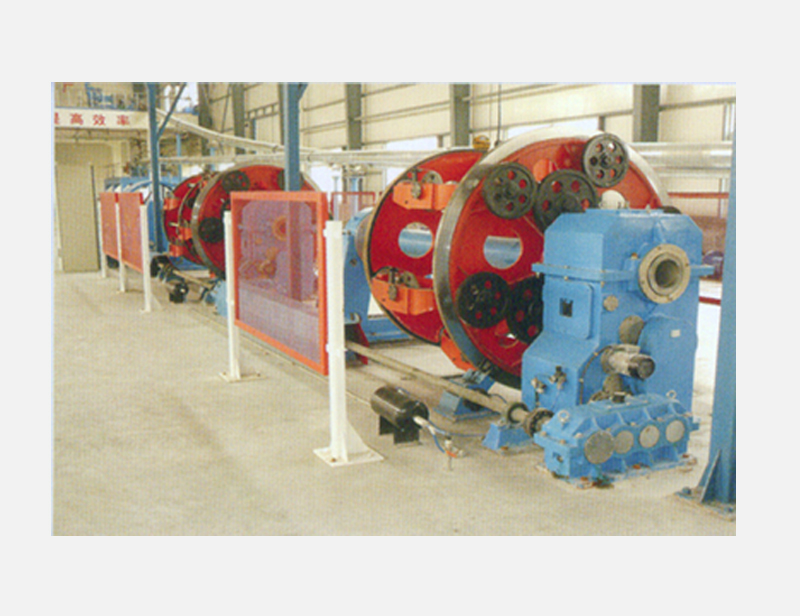

Rigid frame stranding machines are the simplest and most commonly used type of stranding machine. They consist of a fixed frame that supports the rotating drum and the wire spools. The drum is driven by a motor, and the wire is fed through a series of rollers and guides to ensure proper alignment and tension. Rigid frame machines are ideal for producing small to medium-sized cables.

Planetary cage stranding machines are more complex and versatile than rigid frame machines. They consist of a series of rotating cages that are arranged in a circular pattern. Each cage has a set of bobbins or spools that hold the wire. As the cages rotate around a central axis, the wire from each spool is fed through a set of rollers and guides that ensure proper tension and alignment. Planetary cage machines are ideal for producing larger cables and can be used to produce cables with complex geometries.

Tubular stranding machines are the most complex and versatile type of stranding machine. They consist of a rotating hollow tube that is divided into multiple compartments. Each compartment has a set of bobbins or spools that hold the wire. As the tube rotates, the wire from each spool is fed through a series of rollers and guides that ensure proper tension and alignment. The individual wires are then twisted together to form a single cable. Tubular stranding machines are ideal for producing large cables with complex geometries and can be used to produce cables with up to 36 strands.

In conclusion, the stranding machine is an essential piece of equipment used in the electrical continuous casting and rolling process. It is a specialized machine that is designed to twist multiple strands of copper or aluminum wire into a single cable. There are several different types of stranding machines available, including rigid frame machines, planetary cage machines, and tubular stranding machines, each with its unique advantages and disadvantages. The selection of the right type of stranding machine depends on the specific application requirements.
